SLIDE - DEVELOPMENT.jpg

dEVELOPMENT

Driven by the fascination of the Concorde and the lack of an electric-driven semi-scale RC model, Harald Matussek and Lars Habedank engaged themselves in developing an impeller powered Concorde.

From the very beginning, the focus of this project lay on the "scaleness" of the model.

It was not only the original's shape and appearance which have been transferred but also realistic flight characteristics. To add such realism it was important to have an extremely lightweight construction so that this model could fly at a speed that fits its dimensions.

The fuselage and wing combine scale appearance with lightweight construction. After years of challenging development, an ideal balance between multiple power plants, wing profiles, and fuselage constructions was tested in normal operation. Combined, this leads to a very satisfying result.

All fiberglass parts and the custom made retract legs are designed and produced in Germany.

SLIDE - SPECS.jpg

SPECIFICATIONS

The whole model is a fiberglass vacuum sandwich construction with a weight of in sum 5.1kg. The fuselage consists of 2 parts, easy for transportation (~1.8m and ~1.6m long). Besides the fuselage, there are 3 other parts: left-wing, right-wing, and center section. A special retract was developed with a realistic Concorde design.

The retract works electrically and has 2 braked wheels on each main retract (4 braked wheels in total). This is necessary for flying on a paved runway.

The kit includes all fiberglass parts (already painted white), retracts, wheels and brakes. An additional kit to install the realistic nose movement is available.

It can either be powered by two 90mm EDFs with 12S 8000mAh Lipos, or one or two turbines. The take-off weight is between 11-12 kg depending on the setup.

Technical Data
Length: 3400mm
Wingspan: 1450mm
Engine: 90mm Electric Ducted Fan x2
Battery: 12S 8000mA/h (6s 8000mA/h x2)
Flying Time: ~7 Minutes
Take-Off Weight: 11-12 kg (Depending on the equipment)

Standard Paint

Half of the nozzles pre-painted black.

Sale price outside of Europe (excluding VAT):

85 ($99.61 USD)

Sale price within Europe:

100 (incl. VAT)

PAINTING            OPTIONS

Superior Paint



Superior painting includes the standard painting service plus the painting of a livery.

Sale price outside of Europe (excluding VAT):

1,000 ($1,171.85 USD)

Sale price within Europe:

1,200 (incl. VAT)



*Windows, aircraft registration, and decals not painted.

AIR FRANCE 2.png
AIR FRANCE 1.png
NEGUS 1.png
UNION FLAG.png
NEGUS 2.png

LANDOR

UNION FLAG

NEGUS 1

NEGUS 2

PEPSI

SINGAPORE AIRLINES

AIR FRANCE

EEZY_RMPL_NEURON-04 [Converted].png

 NOSE                   ASSEMBLY

An additional kit to install the realistic nose movement is available.


Sale price outside of Europe (excluding VAT):

120 ($140.62 USD)

Sale price within Europe:

€140 (incl. VAT)

Nose Assembly Servo


A strong, special servo for the nose movement with an angle of 180 degrees is necessary.

Sale price outside of Europe (excluding VAT):

115 ($134.76 USD)

Sale price within Europe:

€130 (incl. VAT)

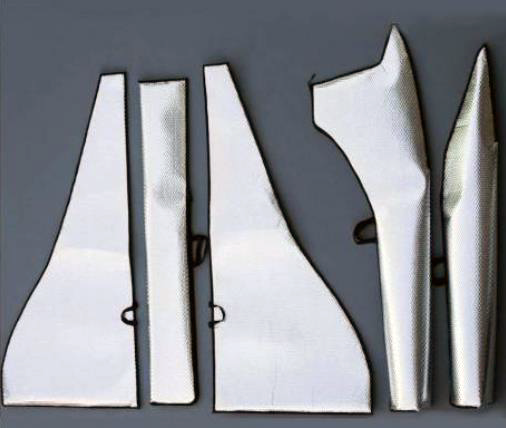

CUSTOM                             TRANSPORT BAGS



Specially made transport bags to keep your jet safe from minor scratches and dings.

Sale price outside of Europe (excluding VAT):

335 ($392.57 USD)

Sale price within Europe:

€400 (incl. VAT)

SPEED CONTROLLER.PNG

YGE 120 HVT

USB ADAPTER.PNG

YGE USB ADAPTER

USB Adapter for easy programming of YGE speed controllers via PC.

1 NEEDED

• Sale price outside of Europe (excluding VAT):

32 ($37.50 USD)

• Sale price within Europe:

€39 (incl. VAT)


YGE CAP 7

This module serves to compensate the inductance of leads with extended battery cables. This is a must have when flying Concorde electric.

2 NEEDED

• Sale price outside of Europe (excluding VAT):

22 ($25.78 USD)

• Sale price within Europe:

€26 (incl. VAT)

opto speed controllers.

2 NEEDED

• Sale price outside of Europe (excluding VAT):

280 ($328.12 USD)

• Sale price within Europe:

€329 (incl. VAT)


DS-51-AXI HDS V2015 / with HET 700-68-1125

and Secure Fan Fix.

2 NEEDED

• Sale price outside of Europe (excluding VAT):

330 ($386.71 USD)

• Sale price within Europe:

€390 (incl. VAT)

PRICING       SUMMARY

non-European customers

Kit: $3,829.96 USD

OPTIONS

Realistic Nose Movement . . . . . . . . .   $141.41

          Servos . . . . . . . . . . . . . . . . . . . . . .   $135.52

Custom Transport Bags . . . . . . . . . . .   $394.78

    Paint:

          Standard . . . . . . . . . .    $100.17

          Superior . . . . . . . . . . .   $1,178.45

EDF (DS-51-AXI HDS V2015) . . . . . . . . .  $388.89

YGE 120 HVT . . . . . . . . . . . . . . . . . . . . . . .  $329.97

YGE CAP 7 . . . . . . . . . . . . . . . . . . . . . . . . .  $25.93

USB Adapter . . . . . . . . . . . . . . . . . . . . . . .  $37.71

European customers

Kit: €3,900

(Prices include VAT)

OPTIONS

Realistic Nose Movement . . . . . . . . .   €140

          Servos . . . . . . . . . . . . . . . . . . . . . .   €130

Custom Transport Bags . . . . . . . . . . .   €400

    Paint:

          Standard . . . . . . . . . .    €100

          Superior . . . . . . . . . . .   €1,200

EDF (DS-51-AXI HDS V2015) . . . . . . . . .  €390

YGE 120 HVT . . . . . . . . . . . . . . . . . . . . . . .  €329

YGE CAP 7 . . . . . . . . . . . . . . . . . . . . . . . . .  €26

USB Adapter . . . . . . . . . . . . . . . . . . . . . . .  €39
